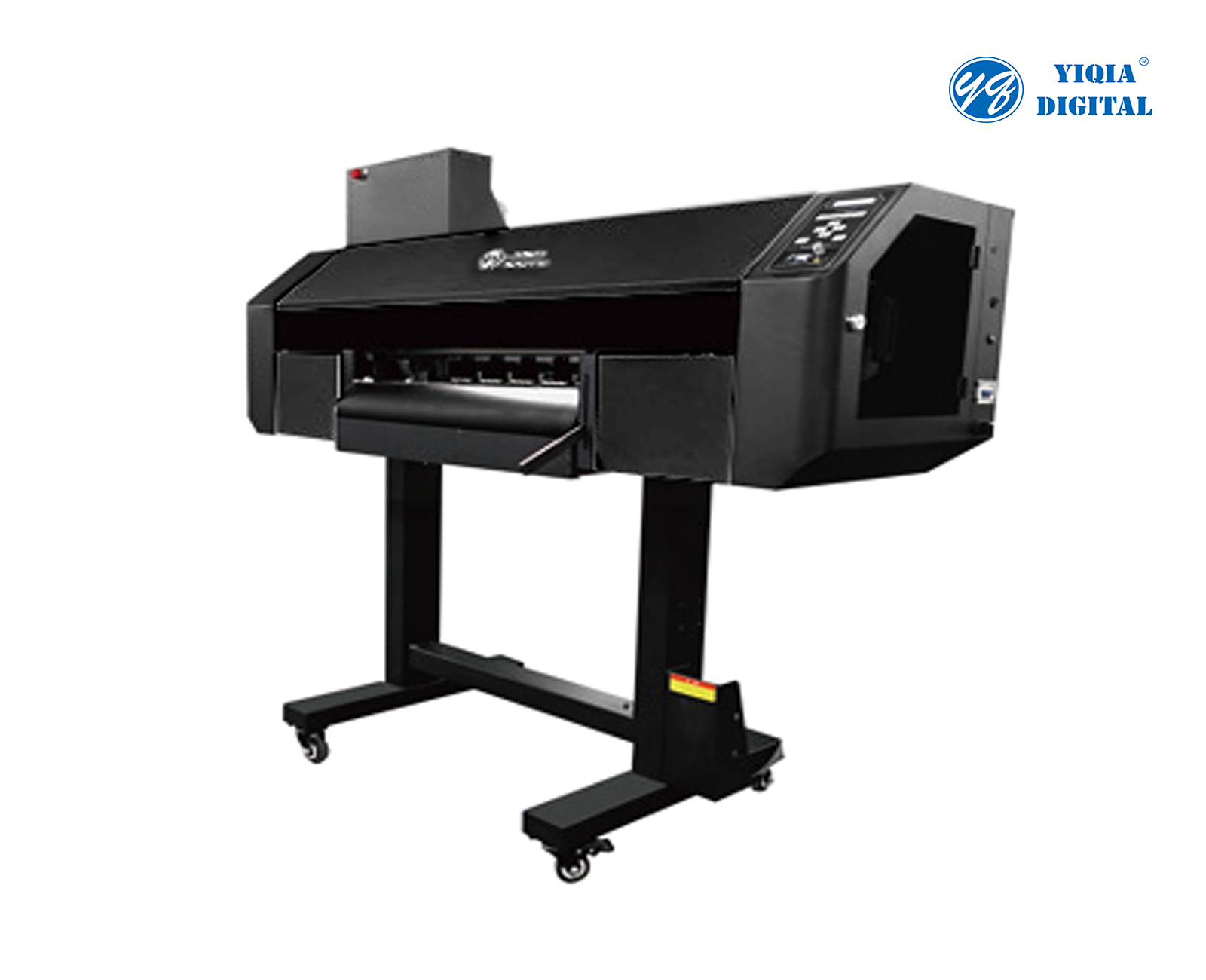

YQ 6202C DTF Printer+ H650 Shaker
YQ-6202C DTF Printer with H650 Powder Shaker is an advanced, all-in-one direct-to-film solution designed for garment and textile printing. From stunning print quality to streamlined powder handling, it’s built to simplify your workflow and elevate your production.
product specification
1. Exceptional Print Quality & Cost-Effective Performance
Powered by dual Epson 13200-A1 print heads, this printer delivers high-resolution, vivid color output at impressive speeds. It supports water-based pigment inks for eco-friendly, long-lasting results. The 1.5L stable ink supply system ensures smooth printing with minimal interruptions — ideal for long production runs while keeping costs under control.
2. User-Friendly Operation & Smart Design
Designed with one-click printing and an intuitive control panel, the YQ-6202C is easy to operate even for beginners. Its modular platform ensures flat material feeding, enhancing print stability. The sleek curvy design not only adds a modern touch but also improves accessibility and functionality.
3. High-Precision Motion & Versatile Material Compatibility
Equipped with a high-quality silent THK guide rail and a powerful motor, the printer runs smoothly with low noise and high precision. The system supports a wide variety of textile materials, making it perfect for printing on cotton, polyester, canvas, hemp, and blended fabrics.
4. Efficient Powder Handling with Residue-Free Shaking
The H650 powder shaker features a belt-driven transmission system for continuous operation and on-demand cutting after printing. Its high-efficiency powder shaking unit applies hot-melt adhesive powder evenly and cleanly, ensuring a professional, residue-free finish every time.
| YQ-6202C DTF Printer | |
|---|---|
| Model Type | YQ-6202C DTF |
| Print Head | Epsoni3200-A1*2pcs |
| Printing Technology | Piezoelectric Inkjet |
| Print wide | 600mm |
| Acceptable Medium | Width: 620mm Thickness: 1mm Weight: 40kg |
| Applicable Medium | Transfer film |
| Color Manager | ICC or density curve |
| Printing Resolution | 2400dpi |
| Media Heating System | Powder & color fixing mahcine |
| Ink cartridge | Ink Type: Transfers Pigment Ink Color: CMYK+W Capacity: 1.5L |
| Printing speed | 4pass: 10sqm/h 6pass: 7sqm/h |
| Ink Curing Method | Dual UV LED water-cooled lamp |
| Interface | RJ-45/ LAN |
| Power Supply | 220V/ 110V/ 10A, 50/60HZ |
| RIP | Main top/ Ripint/ Photoprint |
| Machine size/weight(with bracket) | 1620*620*1550mm/ 110kg |
| Package size/weight(with bracket) | 1710*750*750mm/ 140kg |
| Environment | Temperature 20℃ to 28℃ Humidity 40 to 70% |
| YQ shaker powder color fixing machine | |
|---|---|
| Model Type | YQ-H650 |
| Media wide width | 0-600mm |
| Applicable Medias | Nylon, chemical fiber, cotton, leather, swimsuit, wetsuit, PVC, EVA, etc. |
| Powdering control | Powder shake control, powder sprinkle control, direction, quantity control |
| Rewinding function | Automatic induction winding |
| Heating and drying funtion | Multi-stage heating system, drying, cold air function |
| Electrical parameters | Rated voltage: 220V Rated current: 20A Rated power: 3.42KW Energy consumption: 1-2.5KW |
| Machine size/ Weight | 1954*991*1081mm/ 225kg |
| Packing size/ Weight | 1800*1130*1140mm/ 299kg |
Application
DTF printing combines the best of digital inkjet printing and transfer printing.
In order to meet the individual needs of the market, YIQIA DIGITAL has established a production line for DTF films and a supply chain for DTF inks and hot melt powders to provide customers with a one-stop solution for DTF printing.
Fashion
Mousepad
Hoodie
Bag
T-shirt
Mask
