UV Flatbed Printer
UV Flatbed Printer delivers high-precision performance for industrial and creative UV printing. Equipped with 3 Epson I3200-U1 printheads (optional Ricoh G5i), it supports 600×900mm printing area and adjustable media height from 1–180mm.
Advantages:
✔ Flat & Cylindrical Printing – Supports flat media and bottles/cups with optional rotary;
✔ 15mm Long-Distance Jetting – Perfect for curved or uneven surfaces;
✔ Versatile Applications – Ideal for direct-to-product printing, acrylic, wood, plastic, and crystal labels;
✔ Media Flexibility – Prints on materials from 1–180mm in thickness;
✔ Printhead Options – Standard 3 Epson I3200-U1, optional upgrade to Ricoh G5i.
product specification
UV Flatbed Printer is designed for high-resolution, direct-to-object UV printing across a wide range of materials. With 3 Epson I3200-U1 printheads (optional Ricoh G5i), it supports a 600×900mm print area and adjustable media height from 1–180mm, making it ideal for both small-batch customization and large-scale industrial printing.
Thanks to its 15mm long-distance inkjet capability, this industrial UV printer ensures stable performance even on curved, uneven, or concave surfaces. Compatible with both flat and cylindrical objects (optional rotary attachment), the YIQIA 6090 offers exceptional media flexibility, color vibrancy, and print stability.
Whether you’re creating product packaging, signage, crystal labels, or personalized merchandise, the UV flatbed printer delivers consistent, high-quality output for all your creative and commercial needs.
| YIQIA UV 6090 Flatbed Printer | |
|---|---|
| Model Type | YQ-6090 UV |

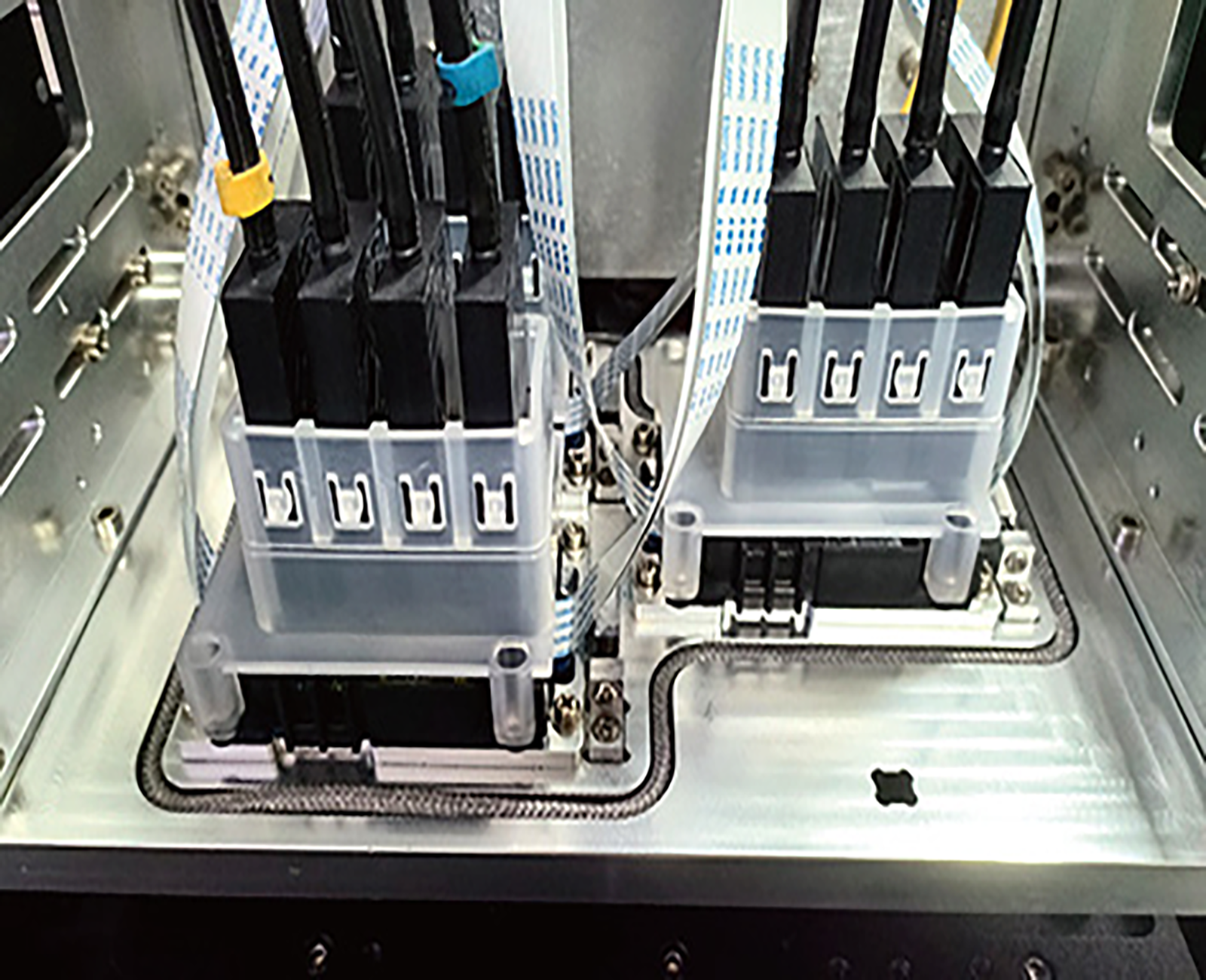

| Print Head | 3*EpsonI3200-U1(optional RicohG5i) |
| Printing Technology | Grayscale micro piezo electric inkjet technology |
| Acceptable Media | Width:900*600mm Thickness:1-180mm |
| Resolution | 2400dpi |

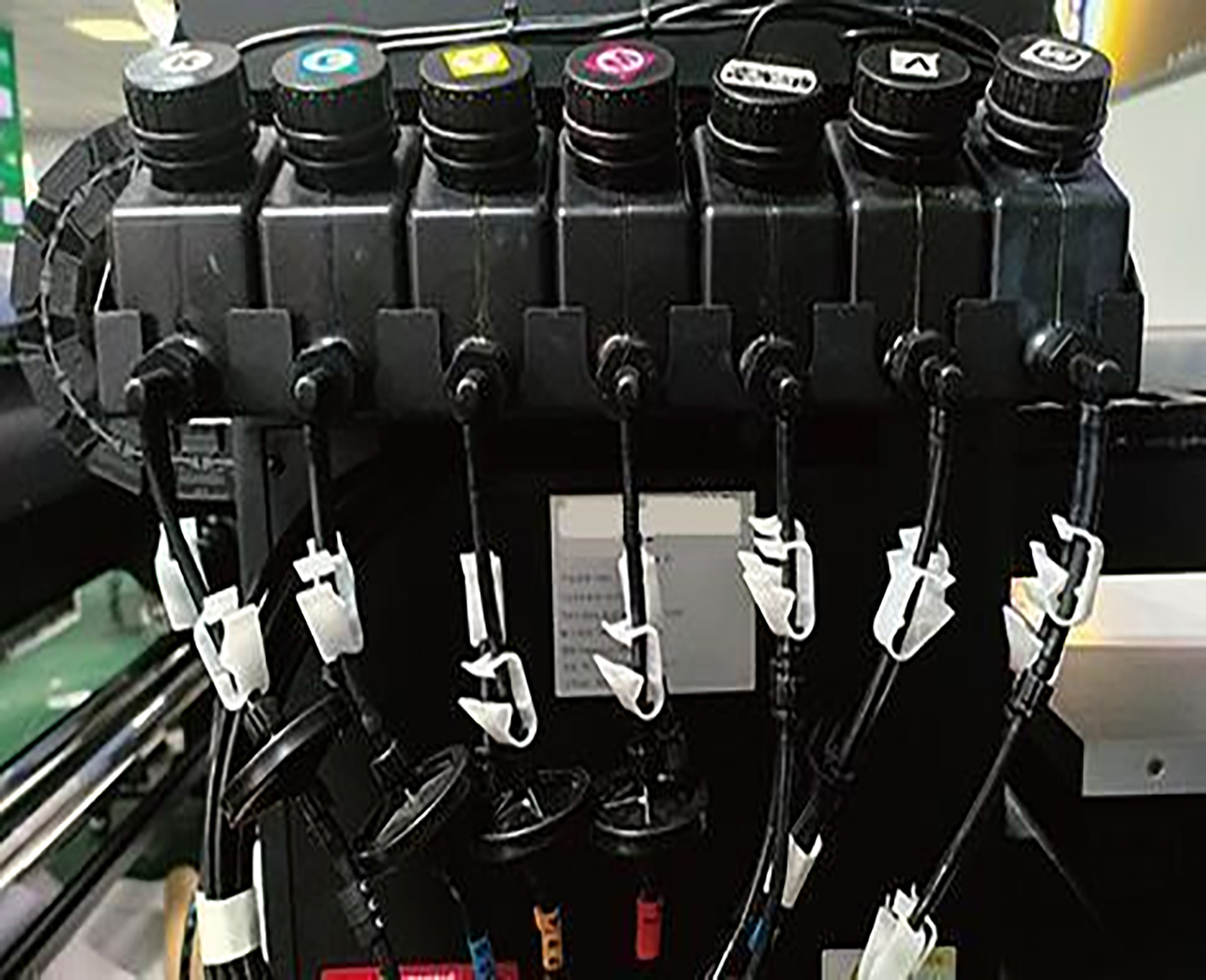

| Ink | Type: UV ink Capacity: Continual Ink Supply System(1.5L ink tank) Color: CMYK/ Lc/ Lm/ W |
| Curved surface height | Additional cylindrical fixtures |
| Ink Curing Unit | Dual UV LED Lamps(air-cooled Lamps) |
| Interface | LAN |
| Power Supply | AC 220V 士10%, 16A, 50/60HZ |
| RIP | Rinpint/Photoprint |
| Machine size/weight(with bracket) | 1700*1550*1500mm/200kg |
| Package size/weight(with bracket) | 2000*1650*900mm/250kg |
| Power | Operating status:1500w |
| Environment | Power on: Temperature 15℃ to 32℃/ Humidity 35 to 80%(no condensation) Power off: Temperature 5℃ to 40℃/ Humidity 20 to 80%(no condensation) |
| Accessories | USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc. |
